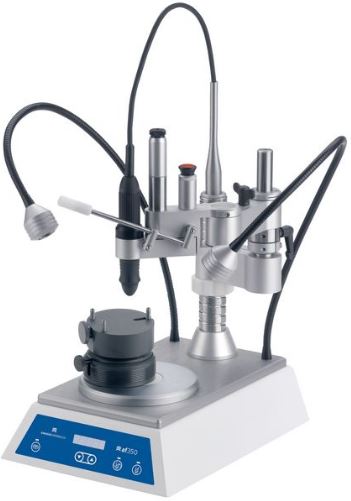

Precision milling unit for surveying, blocking out, milling.

Stable precision milling device on solid vertical column with ball thread and playless, smooth, double-jointed arm. Milling head with micrometer screw for accurate adjustment of vertical drilling. Integrated control for micromotor, magnetic table with modular design and light connections. Micromotor can be replaced by optional analyzing rod for surveying or block out set for blocking out.

Your Benefits:

* Quick and easy fixing of the double-joint arm with one hand

* Automatic retraction of the articulated arm via memory function

* Model table can be magnetically fixed in its position automatically by pressing one button

* It is possible to fix the model table MT3 at the push of a button in any angle with the patented fixing mechanism

* Spring pressure arm resistance for vertical manoeuvrability

* Shadow-free illumination with the LED double light fixture

* Upgrade to an undercut and surveying machine (optional)

Technical Data:

* Dimensions: 340 x 250 x 450 mm

* Weight: 15 kg

* Electrical connected value: 100/115/230 V, 50/60 Hz

* Motor Speed: 1.000 – 40.000 min-1

* Torque: 7,5 N/cm
